Bosch GDE 230 FC-S Angle Grinder Dust Guard 230mm

Name: Bosch GDE 230 FC-S Angle Grinder Dust Guard 230mm
Brand: Bosch Professional
SKU: 290328
Price: 194.99 GBP
Availability: InStock

About Bosch GDE 230 FC-S Angle Grinder Dust Guard 230mm

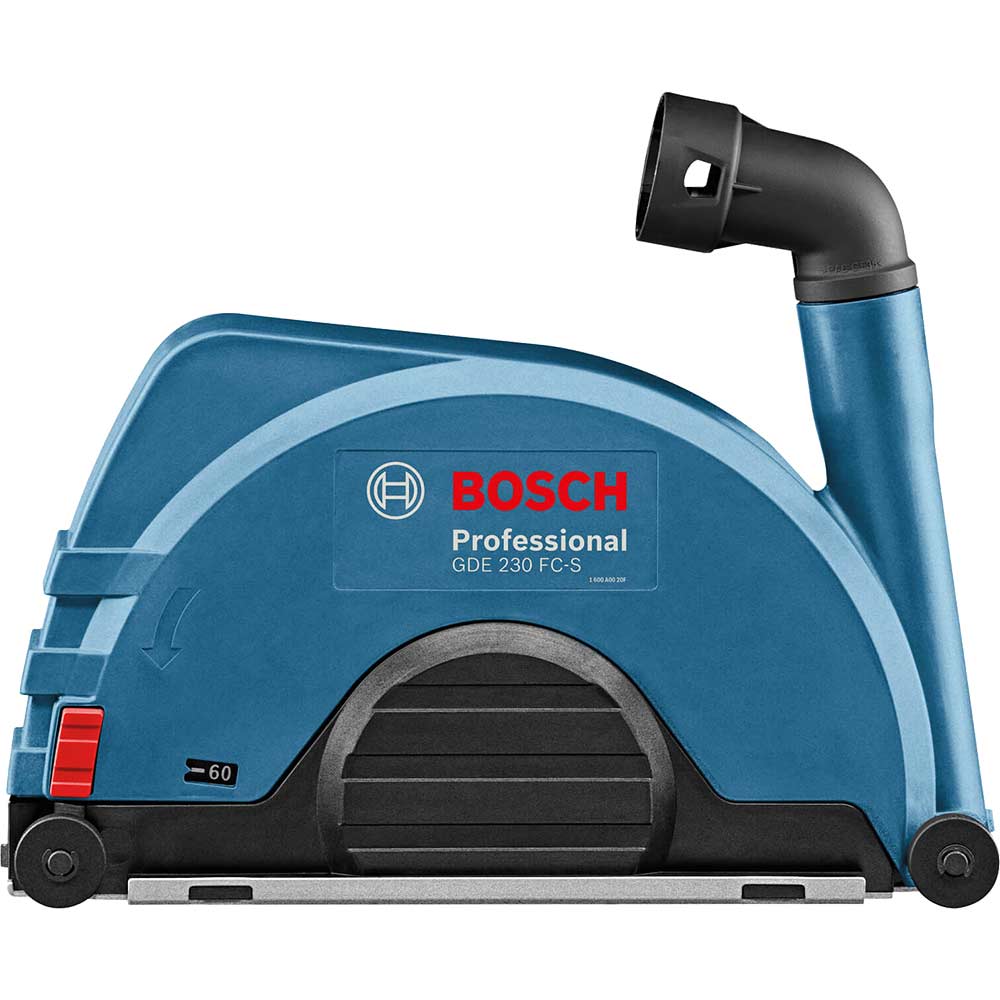

The Bosch GDE 230 FC-S (290328) is a dust guard designed specifically for 230mm angle grinders. It is a Bosch Professional accessory aimed at tradespeople who need to keep their workspace clean when grinding or cutting. It connects to both the angle grinder and a dust extractor for controlled dust capture at the source.

The guard fits a wide range of Bosch 230mm grinders including the GWS20, GWS21, GWS22, GWS24 and GWS230 series. It is fully compatible with the Bosch Click & Clean System making it straightforward to attach and swap between machines in that range. The maximum cutting depth with this guard fitted is approximately 60mm.

Depth of cut adjustment is built in so you can set exactly how deep you need to go without guesswork. The unit weighs 2100g and includes wheels for easier movement across surfaces. It keeps dust contained so there is very little cleaning up afterwards.

If you regularly cut masonry or concrete with a 230mm Bosch grinder this guard is a practical addition. It reduces airborne dust significantly which matters for health and site cleanliness. Backed by the Bosch Professional manufacturer's warranty covering all manufacturing defects.

The Technology Explained

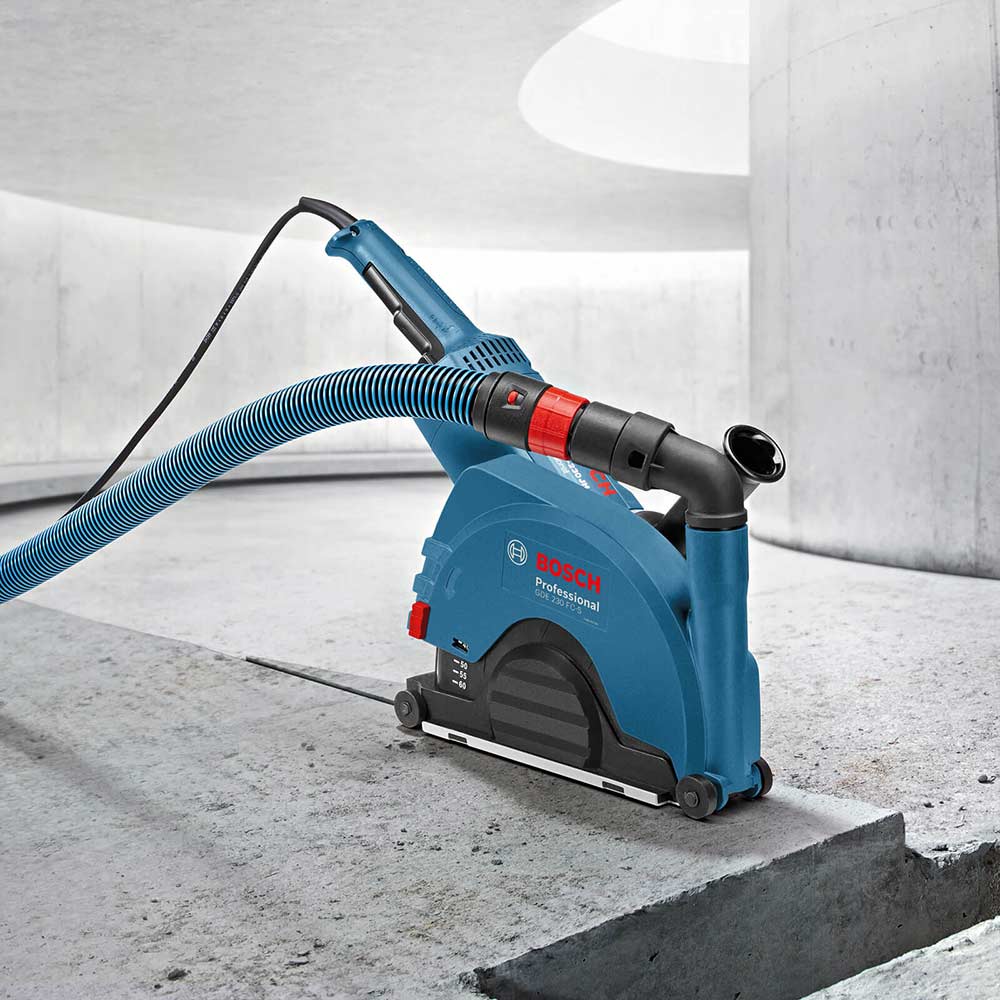

The GDE 230 FC-S is a passive accessory rather than a powered tool. It attaches to compatible Bosch 230mm angle grinders and connects to a dust extractor hose to pull dust away as you cut. The depth of cut adjustment mechanism lets you set a fixed cutting depth up to approximately 60mm which helps with consistent results in masonry or concrete. Wheels on the base reduce friction against the work surface. It integrates with the Bosch Click & Clean System meaning attachment and removal is fast on compatible machines.

Using It Safely

Always fit the correct guard for the task before use. Check that any disc used with your grinder is rated for the machine's maximum speed. Use the side handle on your grinder at all times for control. Wear a dust mask, eye protection and hearing protection. When using this dust guard connect it to a suitable dust extractor to reduce airborne particles. Wait for the disc to come to a complete stop before setting the guard down or adjusting the depth setting.

What It's Good For

Cutting masonry
Cutting concrete
Dust-controlled grinding
Surface cutting with depth control

What's in the Box

Wheels

Check Price

At My Tool Shed

Product Features

Click & Clean Compatibility – Connects directly to the Bosch Click & Clean System for fast tool-free attachment and removal
Dust Extractor Connection – Built-in port connects to a dust extractor hose to capture dust at the point of cutting
Depth of Cut Adjustment – Adjustable depth setting lets you control exactly how deep the disc cuts into the material
Wheels Included – Fitted wheels allow the guard to roll smoothly across surfaces reducing drag during use
Wide Machine Compatibility – Fits a large range of Bosch 230mm grinders including GWS20, GWS21, GWS22, GWS24 and GWS230 series

Specifications

Brand	Bosch Professional
Tool Grade	Trade
Disc Diameter	230mm
Weight	2.1kg
Dust Protection	Captures dust at source via extractor connection
Included Accessories	Wheels
Warranty	Bosch Professional manufacturer's warranty coverin
Model	GDE 230 FC-S
Category	Angle Grinder Dust Guard
Maximum Cutting Depth	~60mm
System Compatibility	Bosch Click & Clean System
Compatible Models	GWS20; GWS2000-23JH; GWS20-230/H/JH; GWS21-230/H/JH/HV/JHV; GWS22; GWS22-230/H/JH; GWS230/H/JH; GWS2300H; GWS24; GWS24-230/B/H/BV/BX/JB/JH/JBV/JBX/H+ZB/PROFI
Delivery	Whole UK, courier usually 1 working day
Returns	30-day money back on unused items

Frequently Asked Questions

Is this dust guard compatible with my Bosch angle grinder?

The GDE 230 FC-S fits a specific range of Bosch 230mm grinders including the GWS20, GWS21, GWS22, GWS24 and GWS230 series. Check your model number against the compatibility list before ordering.

Does this guard work with the Bosch Click & Clean System?

Yes, the GDE 230 FC-S is designed to work directly with the Bosch Click & Clean System. This means it connects and disconnects quickly without tools when used with compatible Bosch machines.

What disc size does this guard fit?

This guard is designed for 230mm angle grinder discs only. It will not fit smaller grinders such as 115mm or 125mm models.

What is the maximum cutting depth when using this guard?

The maximum cutting depth with the GDE 230 FC-S fitted is approximately 60mm. A built-in depth of cut adjustment lets you set the exact depth you need for the job.

Does it connect to a dust extractor?

Yes, the GDE 230 FC-S has a connection point for a dust extractor hose. This allows dust to be captured at the source rather than spreading across the work area.

What does the guard weigh and is it easy to handle?

The guard weighs 2100g and includes wheels to help it move smoothly across surfaces during use. This reduces drag and makes it easier to control during cutting operations.

What warranty does the GDE 230 FC-S carry?

It is covered by the Bosch Professional manufacturer's warranty which covers all manufacturing defects for the normal lifetime of the tool. Wear and tear or damage caused by misuse is not covered.

What accessories are included with the GDE 230 FC-S?

The guard itself is included along with wheels for surface use. For technical support contact Bosch Professional directly on 0344 736 0109.
